trekchair step-by-step assembly guide
Easy Assembly Steps
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/trekchair-frame-only-1024-1664734470627_1200x.jpg?v=1664734472)
step 1

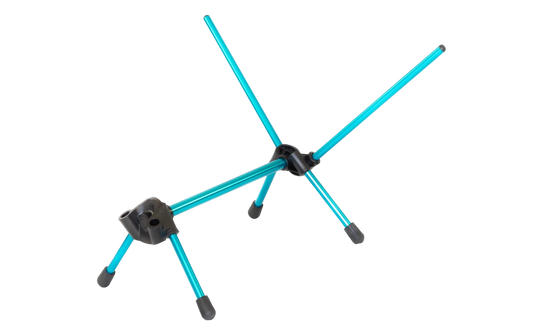

Once you remove the chair frame from its carry bag, allow each of these self-erecting legs to pop into place.
step 2

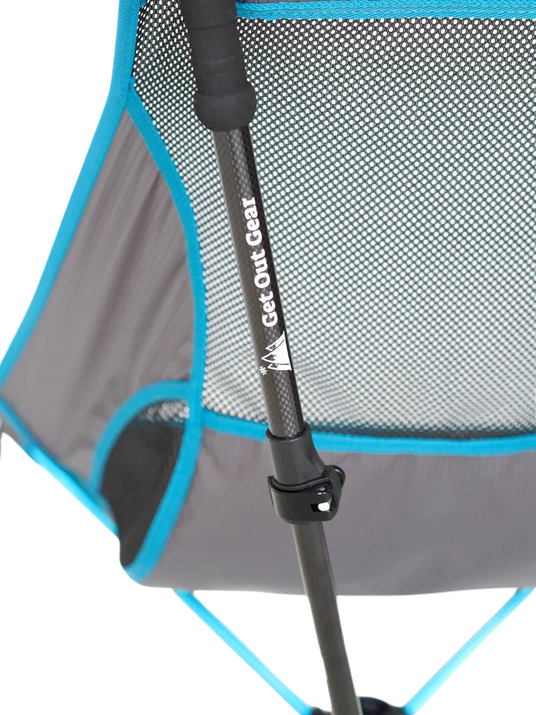

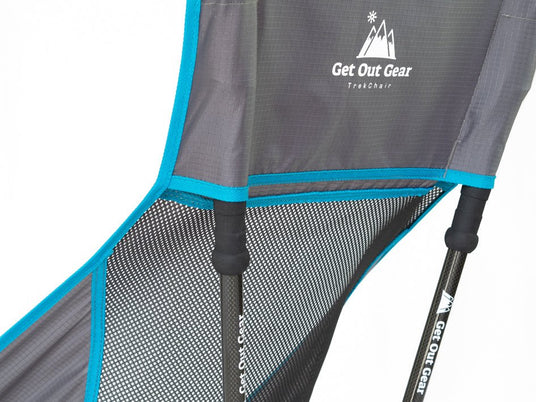

Insert the trekking pole handles into the rear seatback pockets.
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/trekchair-seatback-pocket-detail-1024-1664734780355_1200x.jpg?v=1664734782)
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/trekking-pole-insert-1024-1664737315726_1200x.jpg?v=1664737317)
step 3

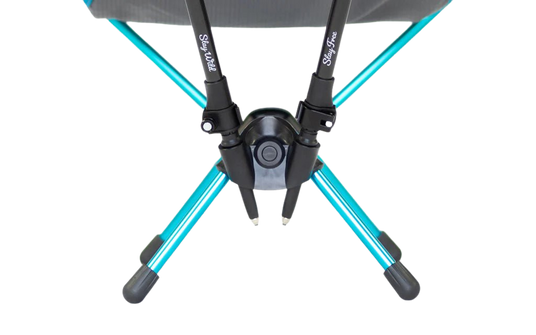

Then insert trekking pole tips into the rear hub.
step 4

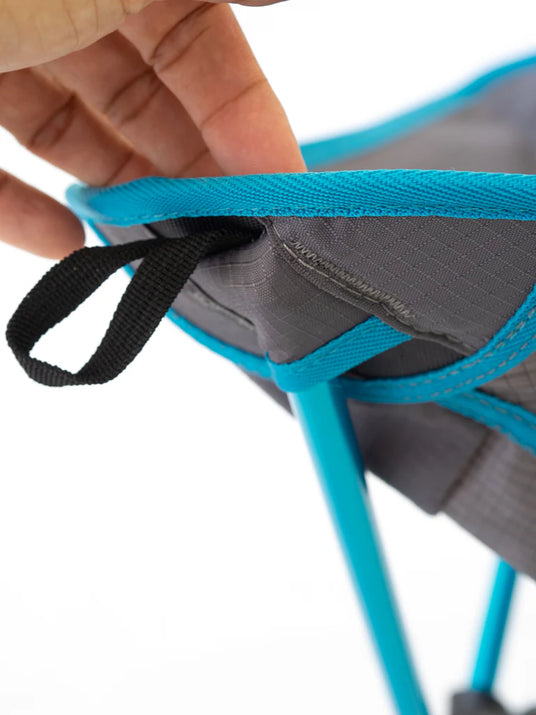

Attach the front of the seat to the front stay bars. .
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/attach-front-seat-stay-1024-1664737256284_1200x.jpg?v=1664737258)

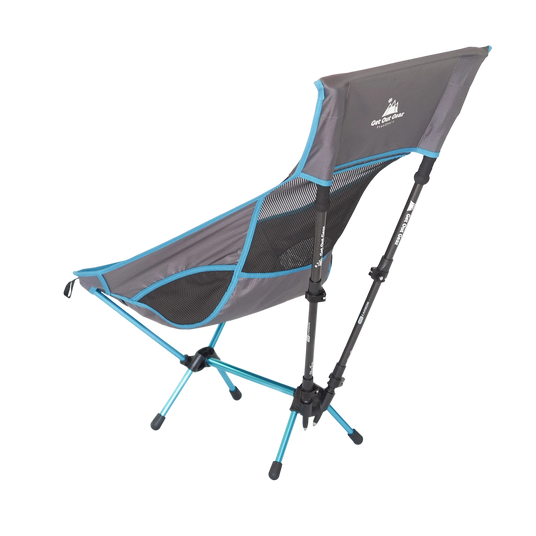

![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/assembled-1024-1664738666135_1200x.jpg?v=1664738669)
step 5
Adjust trekking poles to the desired length. Shorter for a more reclined position. Longer to sit more upright.
Now Sit Back, Relax, and Enjoy!
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/relaxing-1024-1664738817165_1200x.jpg?v=1664738820)
Helpful Tips
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/upper-flip-lock-1664742886885_1200x.jpg?v=1664742890)
Tip #1
Adjust the length of the trekking poles using the upper flip lock on the handle section. Once you've found your desired height, ensure the locking mechanism is tightly closed.
TIP #2

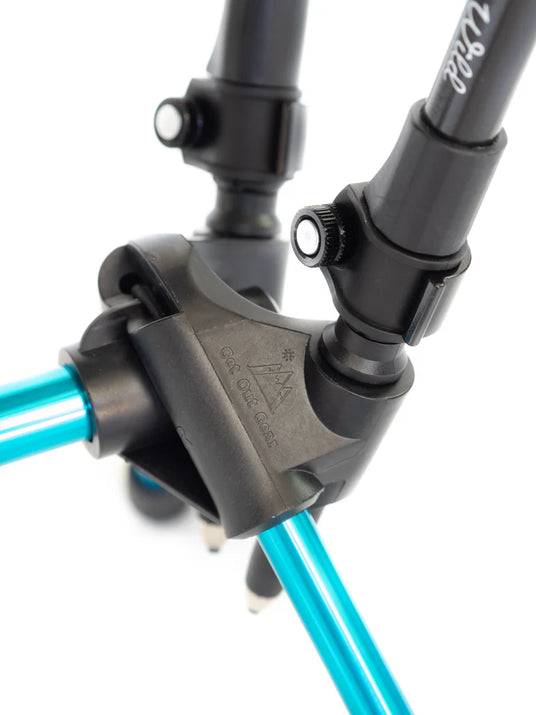

Ensure tips are fully insferted into the rear hub. Remove the mud baskets if attached.
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/fully-inserted-1664742136455_1200x.jpg?v=1664742138)
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/minimum-extension-1664741430972_1200x.png?v=1664741433)
Tip #3

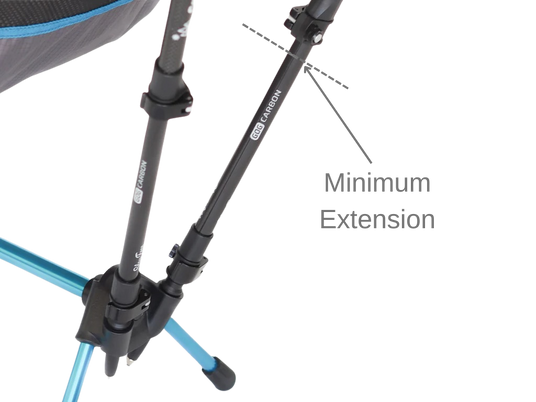

Extend the flip lock 1 inch above the "GOG CARBON" insignia for the most reclined seating position. Or extend the poles as far as they will go to sit more upright.
TREKCHAIR SPECIFICATIONS
![](https://cdn2.shopify.com/s/files/1/2170/1117/t/10/assets/pf-1adb3df0-f7c7-4dda-a5ef-4f5c425d94ee--1_1200x.png?238087)
Ultralight and Compact
By using the trekking poles, we leave behind many pole sections used in traditional chairs. This results in a pack size that is 40% less volume, saving valuable space in your pack.
![](https://cdn2.shopify.com/s/files/1/2170/1117/t/10/assets/pf-39a3ef8c-b80c-41e8-aa9b-38daa6ca5409--2_1200x.png?238095)
Made to Last
A premium carbon fiber frame and an aircraft-grade aluminum alloy base allows the TrekChair system to weigh 1.5 lbs while supporting up to 350 lbs.
![](https://cdn2.shopify.com/s/files/1/2170/1117/t/10/assets/pf-6f871270-c829-46af-bd7a-88f05faf4dd0--4_1200x.png?238103)
Premium Carbon Fiber Trekking Poles
Shed the extra weight with premium carbon fiber 7.8 oz TrekChair poles. Three- Part Telescoping design with sturdy Flip Lock Mechanism to secure your poles at the desired length in seconds.
![](https://cdn2.shopify.com/s/files/1/2170/1117/t/10/assets/pf-4bf5d3a0-e4f0-42fd-8979-25079c2bdf9a--5_1200x.png?238275)
Versatility
Trekking pole SPECificationS
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/poles-1644441836697_1200x.png?v=1644441839)
Warranty
![](https://cdn.shopify.com/s/files/1/0113/5722/5026/t/11/assets/waranty-1644616244142_1200x.png?v=1644616244)
We're confident you'll love your TrekChairr, but if you're unhappy for any reason - whether it an issue with the product or just a change of heart - just send the product back to us and we'll make it right. Email us at support@shopgogear.com
